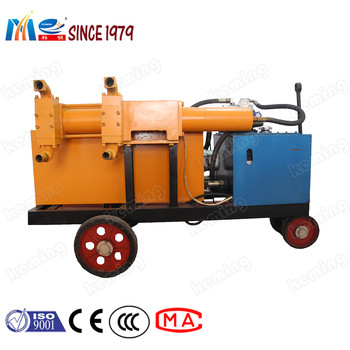

Adjustable grouting pressure Hydraulic Grout Pump for concrete grouting use
Hydraulic Grout Pump Machine Introductions:
Hydraulic Grout Pump includes KBY series and KBYSseries, which are a kind of grounting pump that can grount and convey mortar or similar fluids materials.
Hydraulic Grout Pump Machine Features:
1. Adjustable grounting pressure within the rated pressure.
2. Perfect waterproof device.
3. Separated control valves.
4. Single or double fluid grounting.
5. Special suction-discharge valve and sealing structure.
6. Advanced monitoring system with double seismic pressure gauges.
7. Small size, light weight, flexible movement, reliable performance.
Hydraulic Grout Pump Machine Application:
1. KBY Hydraulic Grout Pump is mainly applied in mining well, tunnel, hydraulic engineering subway, bridge and building construction, to grout for water blocking, fill in void or reinforce the crumbly strata.
2. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large are a coating in construction engineering.
3.Filling cement grouting of road surface collapese in highway payment maintenance.
4. Dam reinforcement in water engineering.
5.Slurry injection expansion in pre-stressed engineering.
6. Slope protection grouting in civil engineering, mining tunnel construction etc.
Hydraulic Grout Pump Machine Technical Parameters:
| Model | Pressure Mpa | Output m3/h | Motor kw | Weight kg |
| KBY3/7-11 | 0 | 4.6 | 11 | 400 |
| 7 | 3 |
| KBY8/7-18.5 | 0 | 13 | 18.5 | 600 |
| 7 | 2 |
| KBY3/16-22 | 0 | 10.2 | 22 | 480 |
| 16 | 2 |
| KBY2.1/21-22 | 0 | 2.7 | 22 | 480 |
| 21 | 0.6 |
| KBY5/18-22 | 0 | 5.2 | 22 | 480 |
| 18 | 1.2 |
| KBY3/21-30 | 0 | 4.9 | 30 | 510 |
| 21 | 3 |
