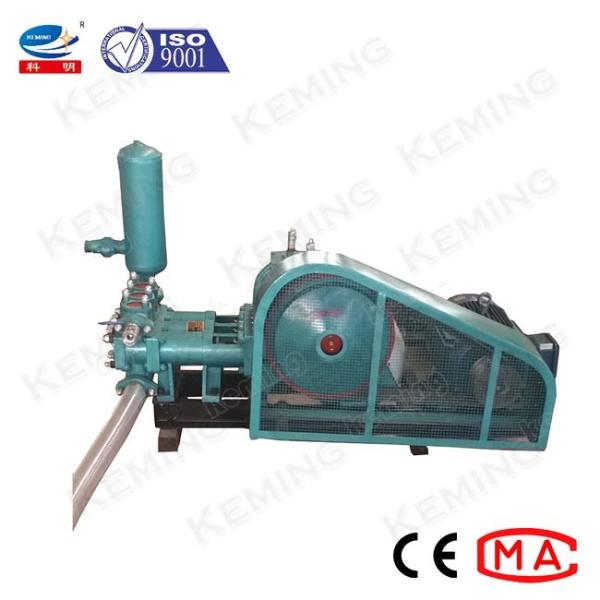

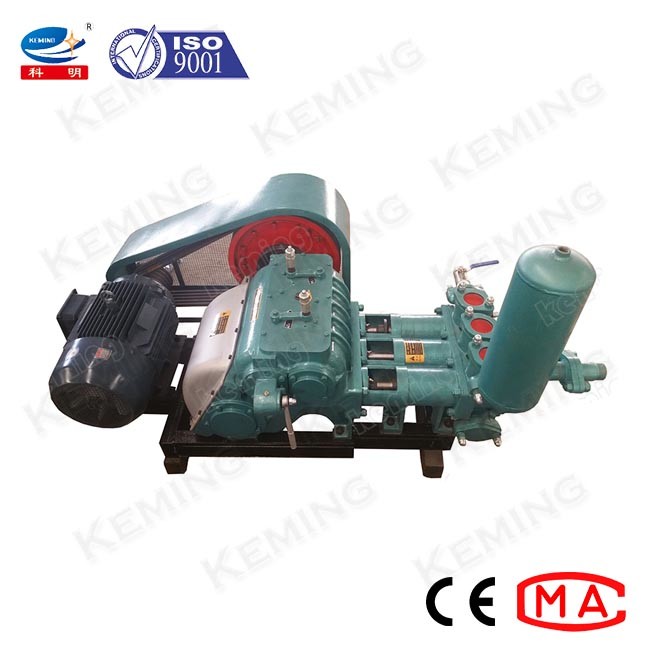

15kW 250L/Min Cement Grouting Pump Cement Slurry Pump

Brand Name : KEMING

Model Number : KBW-250

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Per Month

Delivery Time : 5~8 Work Days

Packaging Details : Export Wooden Packing

Capacity : 35~250L/min

Pressure : 2.5~7.0Mpa

Motor : 15kW

Option : Diesel/Electric

Contact Now

High Efficiency Large Mortar Cement Slurry Pump Foam Cement Pump

Slurry Pump Features:

1. KBW-250 grouting pump is horizontal triplex reciprocating single-acting piston pump.

2. Two different cylinder diameters, four gear speed, four displacements for different drilling hole size and hole depth.

3. High quality pump parts, less energy consumption, less wearing parts, long service life.

4. Flexible manipulation, easy dismantlement and move.

Slurry Pump Application:

1. KBW-250 grouting pump with large cylinder diameter (Φ80mm) can equip large-aperture drilling machine (1000m), and grout pump with small cylinder diameter (Φ65mm) can equip small-aperture drilling machine (1500m).

2. KBW-250 grout pump can be used as cement grout pump in foundation treatment engineering, railway, hydraulic engineering, metallurgy, construction, geology and other industries.

Slurry Pump Parameters:

Model
KBW-250 grouting pump
Type
Horizontal triplex reciprocating single-acting piston pump
Stroke (mm)
100
Cylinder diameter (mm)
80
65
Stroke frequency (min-1)
200
116
72
42
200
116
72
43
Flow (L/min)
250
145
90
52
166
96
60
35
Pressure (MPa)
2.5
4.5
6.0
6.0
4.0
6.0
7.0
7.0
Volume efficiency (%)
90
Overall efficiency (%)
75
Power (kw)
15
Input speed (r/min)
500
Suction height (m)
2.5
Suction pipe ID. (mm)
76
Discharge pipe ID. (mm)
52
Dimensions (L×W×H) (mm)
1750×950×950
Weight (kg)
550
