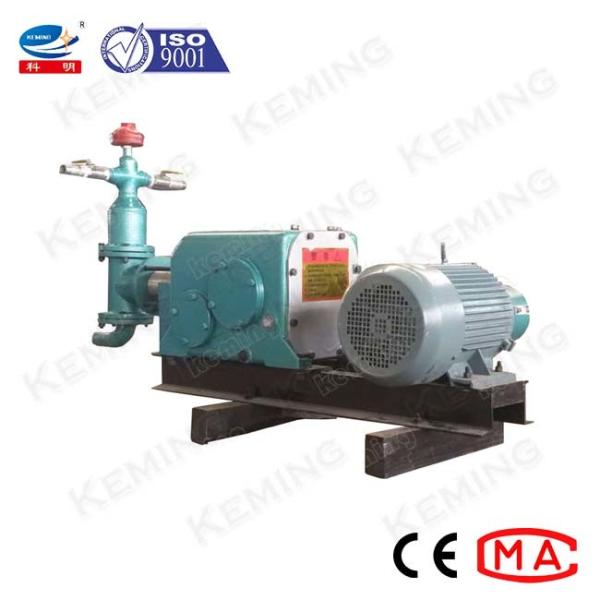

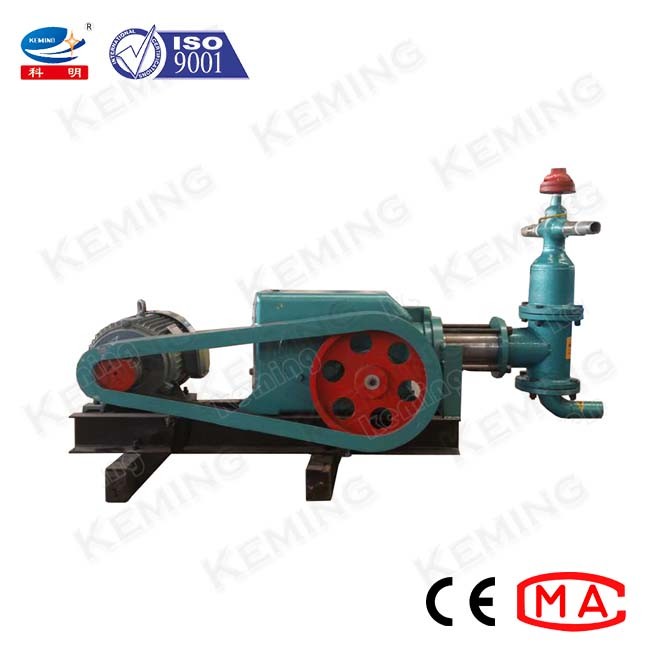

5.5KW 50L/Min Bridges Diesel Cement Grouting Pump

Name: 55KW 50LMin Bridges Diesel Cement Grouting Pump
Brand: KEMING
Price: 1 USD

Brand Name : KEMING

Model Number : KBW-50

Certification : CE

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, L/C

Supply Ability : 100 Sets/Per Month

Delivery Time : 5~8 Work Days

Packaging Details : Export Wooden Packing

Capacity : 50L/min

Pressure : 3Mpa

Motor : 5.5KW

Option : Diesel/Electric

Contact Now

High quality mortar pump cement grout pump concrete grouting machines

Grouting Pump Features:

1. KBW mud pump is widely used for grouting and mud jacking in engineering construction.

2.KBW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout

cement slurry or equipped with drilling machine.

3. High quality pump parts, less wearing parts, long service life, low construction cost.

4. High pump efficiency, less noise and dust, environmental operation, easy maintenance.

Grouting Pump Application:

1. KBW-50 piston pump is widely used for cement/mortar grouting in roads, bridges, dams, national defense, mines and other construction projects.

2. KBW-50 piston pump can be used to grout mortar in prestressed component engineering, vertical and horizontal conveying of mortar in building construction, cement grouting maintenance in sand land, blast furnace, cement pavement, highway and other projects.

Technical Parameters:

Model	KBW-50 grouting pump
Capacity (L/min)	50
Cylinder number (piece)	1
Cylinder diameter (mm)	80
Piston stroke (mm)	90
Pressure (MPa)	3
Motor (KW)	7.5
Input speed (r/min)	1440
Suction hose ID. (mm)	51
Discharge hose ID. (mm)	32
Maximum suction height (m)	2
Triangle belt model	A1880 (3 grooves)
Dimensions (L x W x H) (mm)	1500×550×800
Weight (kg)	200

5.5KW 50L/Min Bridges Diesel Cement Grouting Pump
